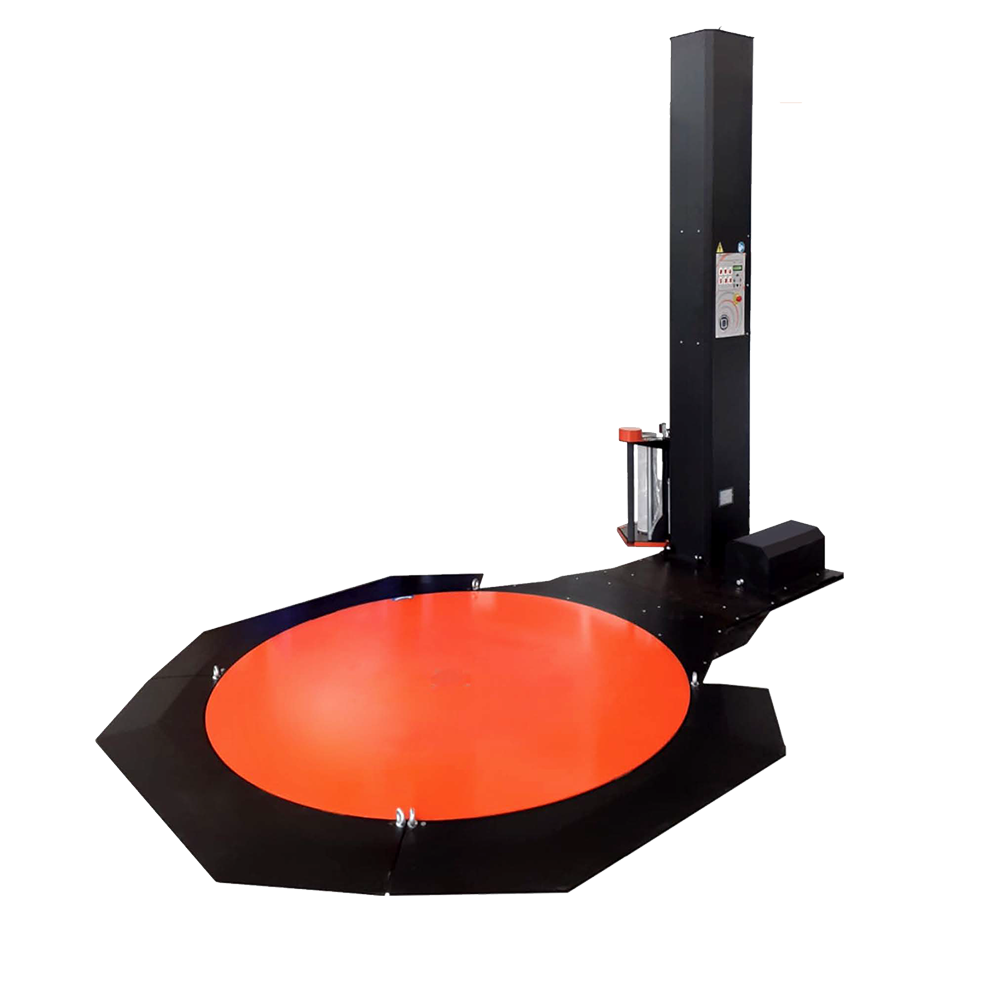

EvoPac Dali

Be in control of the packaging process!
The Dali model was developed as a result of problems caused by operator fatigue when using standard semi-automatic pallet wrapping machines. With its platform height of only 23 mm, the machine facilitates loading and unloading by requiring a very short ramp for the pallet truck and saves you space. The new “hugging” ramp allows loading from any direction. With its capacity to wrap loads up to 1200 kg, this machine is your brush to become the greatest artist in pallet wrapping.

Main Features

• Maximum pallet height: 2500 mm;
• Platform size: 1650 mm;
• Maximum load capacity: 1200 kg;
• Frequency regulator for carriage speed;
• Frequency regulator for platform speed;
• Electromagnetic brake for stretch film tension;
• Customized photocell for automatic pallet height detection;
• Emergency stop button under the carriage;
• Two-belt system for carriage lifting;
• Number of packaging modes – 6;
• Electronic board – ALL SHORTCUTS – (AS);
• Two operating modes:
  • Mode 1 – Quick Program Buttons (up to 6);
  • Mode 2 – Access to all parameters with 1 press:
• Platform speed (RPM);
• Down revolutions;
• Up revolutions;
• Stretch tension;
• Carriage speed when climbing;
• Carriage speed when descending;
• Self-diagnostics;
• 1-year warranty.

Most Popular Options

• Power Pre-Stretch carriage with automatic cutting system;
• Pre-Stretch carriage with two motors;
• Top press;
• Packaging height 3000 mm;
• Ultra “hugging” ramp;
• Short single ramp.
