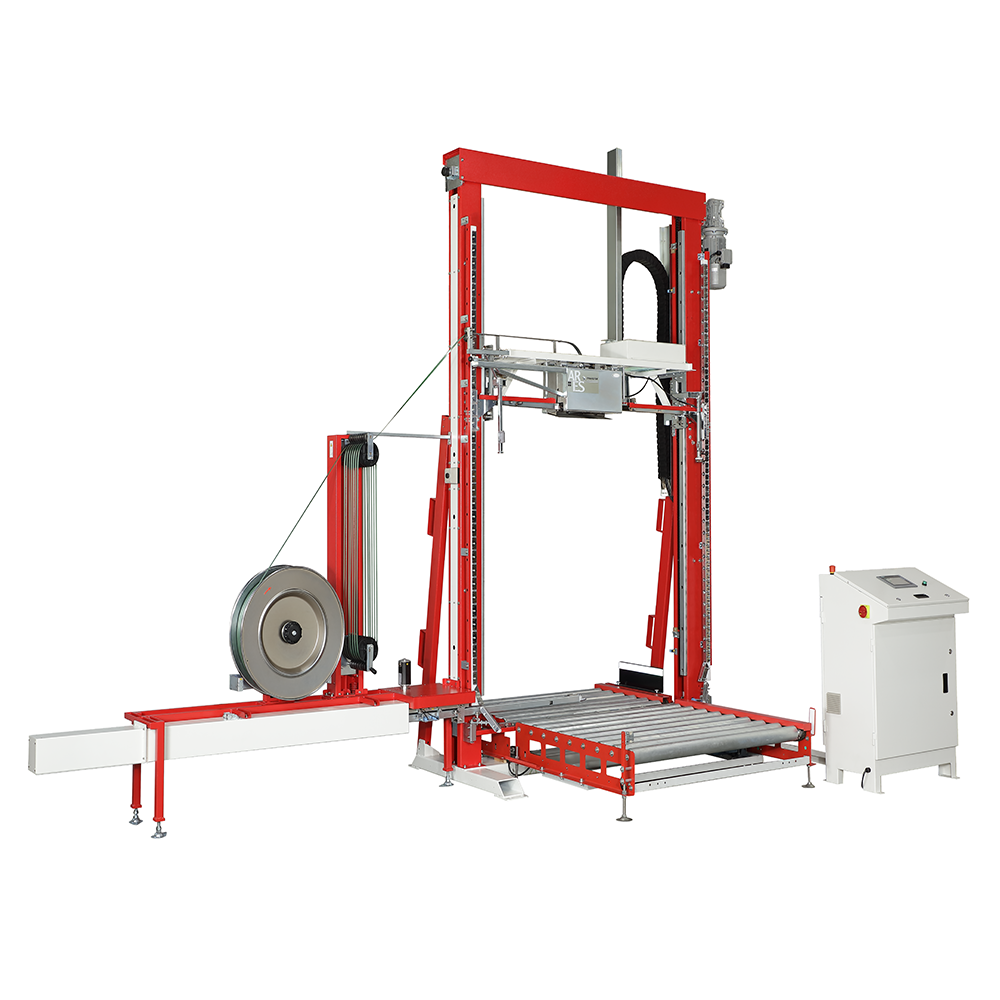

TP-733VTS Zelos

TP-733VTS is ideal for general palletized products. It is also suitable for those with low package height. The top sealing design provides the highest strapping efficiency onto the packages. The easy operating SIEMENS touch panel gives simple job for operator to control and monitor the task. With quick connection to master control system, TP-733VTS can perfectly fit every end-of-line packaging operation.

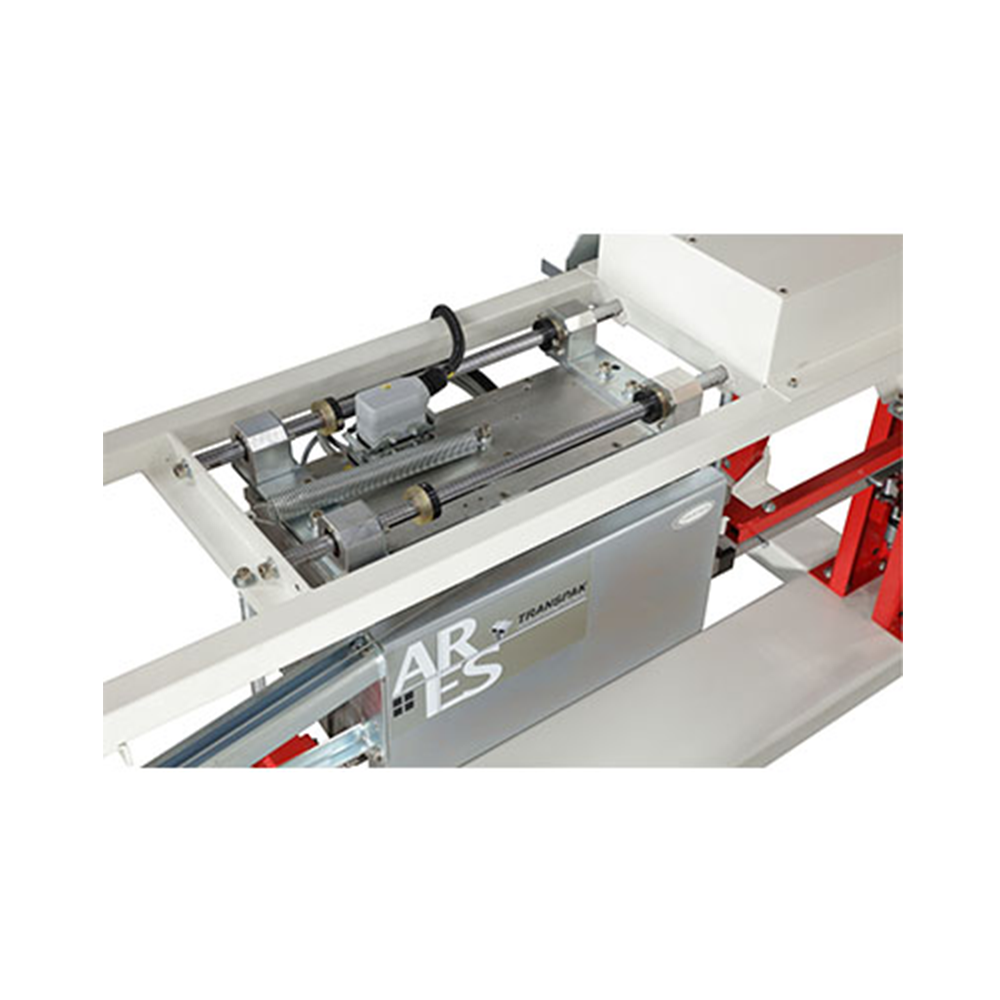

  • ARES TP-733-SH strapping head

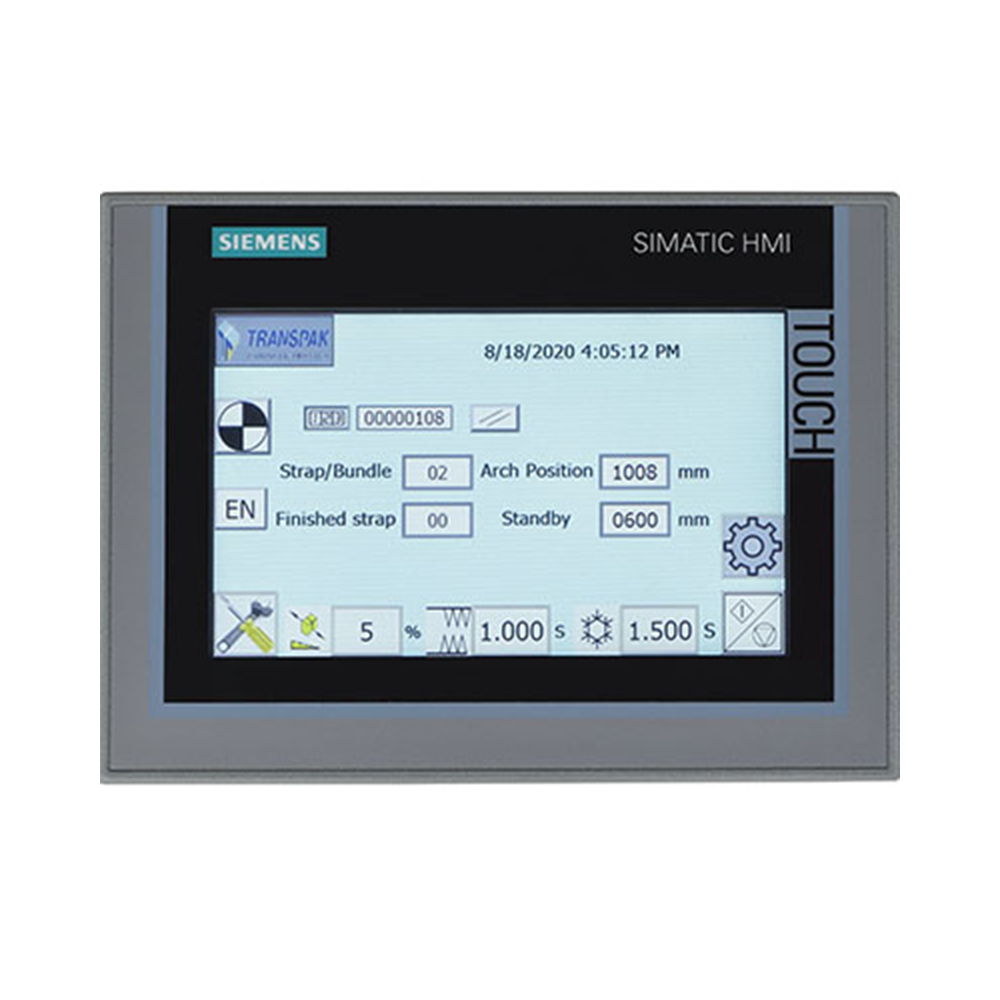

  • Siemens PLC and HMI
  • Floating head
  • Strap can be fed at any height
  • Friction weld sealing technology
  • Free access to strap guides
  • All electric driven design
  • Strap end ejector
  • Adjustable sealing and cooling time
  • Adjustable speed for strapping head movement
  • Excellent package top detection
  • Dual channel e-stop



  • Lower tension range (200-1200 N)
  • Light tower with low strap sensor
  • Air conditioner for electric control cabinet
  • Uplifted support
  • Adding underfeed channel (patent registered)
  • Automatic self-adjusting strapping height for next package
  • End of strap signal

Technical Data

Capacity Up to 63 pallets/hour
(2 parallel straps)
Strap Type PP and PET strapping
Strap Width 9 mm, 12 mm, 15.5 mm, or 19 mm
Tension Range 1,100 – 3,200 N (standard)
200 – 1,200 N (optional)
Minimum Package Size 350 mm (W) x 300 mm (H)
Strap Core Size 406 mm
Electrical Requirements 220V, 380V, 400V, 415V  50/60Hz 3PH
