GoldTape 50-65-80
opzione 1 Side belt drive system – top and bottom sealing
opzione 2 Sealing machine with operator
opzione 3 Box sealing with selfadhesive –tape

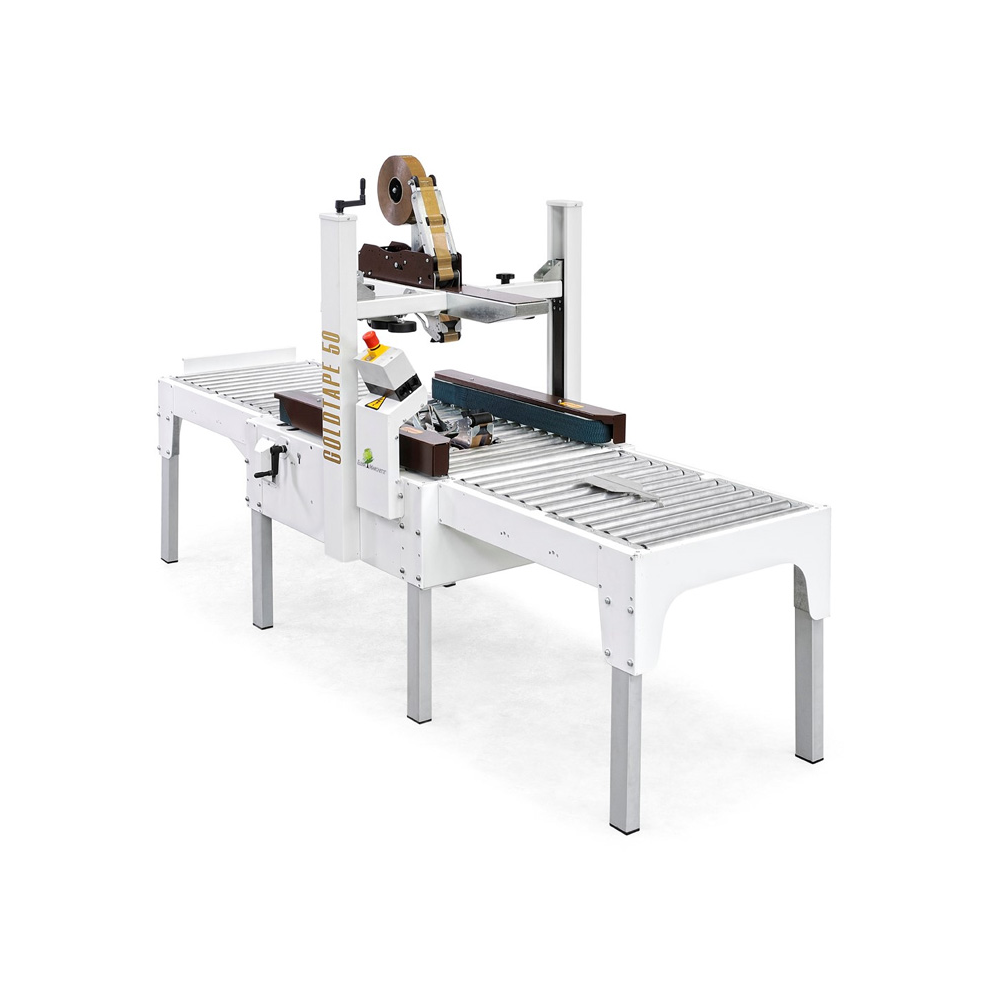

Semiautomatic carton sealer with manual adjustment for top and bottom sealing of uniform American-type box size batches with adhesive tape

The machine can be used by unskilled operators as it requires very easy adjustment operations.The operator squares the boxes folding the bottom flaps, fills the boxes, folds the top flaps and insert them into the machine.While the boxes pass through the machine the top and bottom flaps will be sealed simultaneously by the taping heads. The boxes are fed by side belts, driven by a single motor ensuring a smooth carton transport.This solution grants a perfect uniform box sliding, aligning of the flaps and an optimum sealing, through the performant TU taping heads.

Combined with infeed and outfeed conveyors, represents a simple, fast and userfriendly packaging station.

  • Machine table made of free metal rollers
  • 2 columns frame, 1 with screw, to symmetrically move top taping head
  • 4 side pressure rollers (2 + 2) to keep the box top flaps closed
  • Special system to lock the top taping head frame in the upper position to facilitate bottom tape reel replacement
  • 2 taping heads (top & bottom) tape 50mm for GT50 – TU3 for tape 75mm for GT65 & GT80
  • Start & Stop button with Stop emergency button in ergonomic & easy to reach position

GT50

TECHNICAL DATA U.M.
Machine footprint (LxWxH) mm. 990x965x1420
Machine weight Kg. 120
Hourly production rate Boxes/h 1400
Width driving belts mm. 65
Box transfer speed mt./min. 24
Minimum box dimensions (LxWxH) mm. 150x100x100
Maximum box dimensions (LxWxH) mm. ∞x510x510
Maximum weight of the box Kg. 6 each 100 mm. lenght
Workbench height mm. 650 ÷ 750
ELECTRICAL DATA U.M.
Voltage V 400
Phases 3~+PE
Frequency Hz 50
Installed power kW 0,22
Electrical protection rating IP 55

GT 65

TECHNICAL DATA U.M.
Machine footprint (LxWxH) mm. 990x1146x1544
Machine weight Kg. 135
Hourly production rate Boxes/h 1400
Width driving belts mm. 90
Box transfer speed mt./min. 24
Minimum box dimensions (LxWxH) mm. 150x100x120
Maximum box dimensions (LxWxH) mm. ∞x660x660
Maximum weight of the box Kg. 6 each 100 mm. lenght
Workbench height mm. 650 ÷ 750
ELECTRICAL DATA U.M.
Voltage V 400
Phases 3~+PE
Frequency Hz 50
Installed power kW 0,22
Electrical protection rating IP 55

GT 80

TECHNICAL DATA U.M.
Machine footprint (LxWxH) mm. 990x1297x1694
Machine weight Kg. 140
Hourly production rate Boxes/h 1400
Width driving belts mm. 90
Box transfer speed mt./min. 24
Minimum box dimensions (LxWxH) mm. 150x100x120
Maximum box dimensions (LxWxH) mm. ∞x810x810
Maximum weight of the box Kg. 6 each 100 mm. lenght
Workbench height mm. 650 ÷ 750
ELECTRICAL DATA U.M.
Voltage V 400
Phases 3~+PE
Frequency Hz 50
Installed power kW 0,22
Electrical protection rating IP 55
