GoldTape 34-346
opzione 1 Sealing machine with operator
opzione 2 Box sealing with selfadhesive –tape
opzione 3 Top and bottom belt drive system – top and bottom sealing



Semi-automatic manual dimensioning tape sealing machine, with four flat bottom timing belts. The machine carries out, with auto-adhesive tape, the sealing of the bottom and top of same sized American type boxes.

The machine must be adjusted through handles on the box dimensions to be sealed. The operator squares the boxes folding the bottom flaps, fills the boxes, folds the top flaps and insert them into the machine. While the boxes pass through the machine the top and bottom flaps will be sealed simultaneously by the taping heads. If combined with infeed and outfeed pack tables, represents a simple and efficient packaging station.

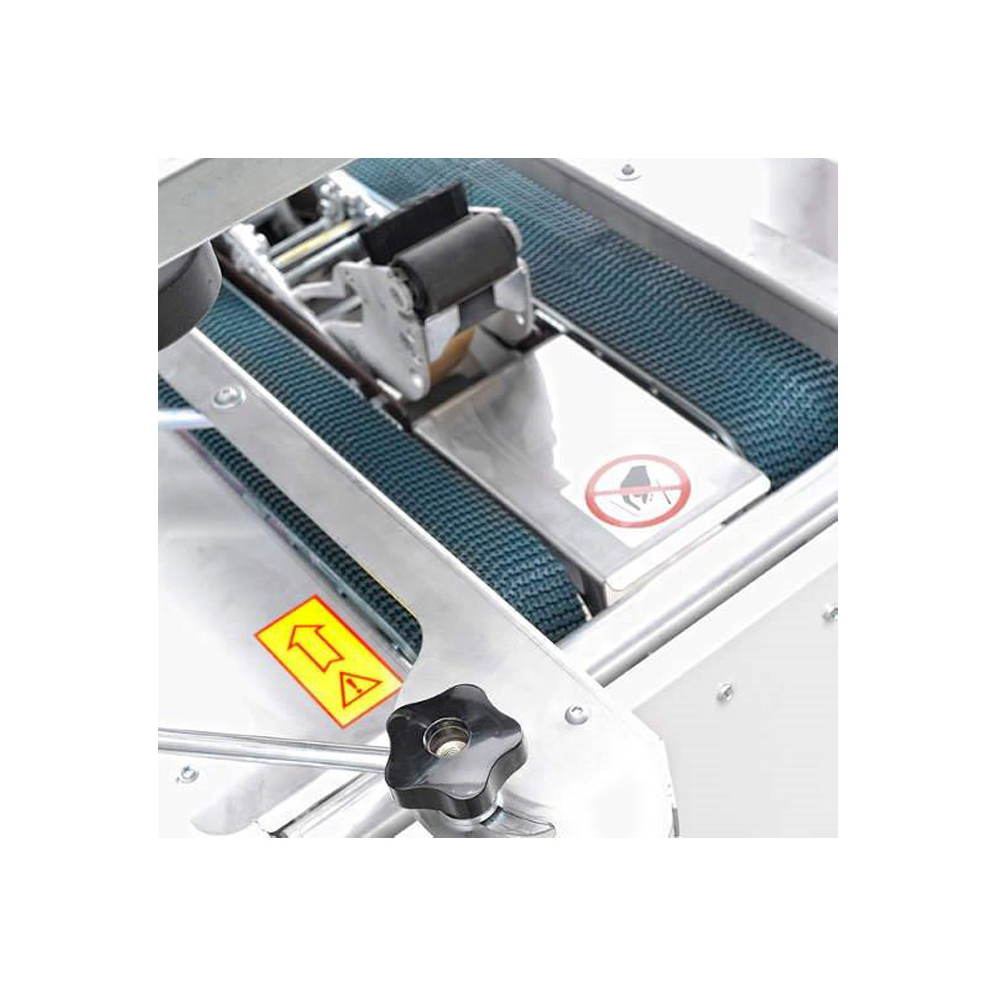

  • Box transfer on driving belts combined with steel plates
  • Two columns frame with one screw each to symmetrically move top taping head
  • Safety protections according to the safety standards laws in force (CE certified)
  • 4 side pressure rollers (2 + 2) to keep the box top flaps closed
  • Self-centering bottom side guides to center the box in the middle of the machine
  • 2 standard taping heads (top & bottom)TU2 for tape 50 mm wide (GT34), TU3 for tape 75 mm wide (GT346) from 25 to 50 mm. wide taping heads on request
  • Start & Stop button with Stop emergency button in ergonomic & easy to reach position

GT34

TECHNICAL DATA U.M.
Machine footprint (LxWxH) mm. 990x1022x1464
Machine weight Kg. 140
Hourly production rate Boxes/h by operator speed
Width driving belts mm. 65 up. / 90 low.
Box transfer speed mt./min. 24
Minimum box dimensions (LxWxH) mm. 150x140x100
Maximum box dimensions (LxWxH) mm. ∞x510x510
Maximum weight of the box Kg. 6 each 100 mm. lenght
Workbench height mm. 650 ÷ 750
ELECTRICAL DATA U.M.
Voltage V 400
Phases 3~+PE
Frequency Hz 50
Installed power kW 0,22
Electrical protection rating IP 55

GT346

TECHNICAL DATA U.M.
Machine footprint (LxWxH) mm. 990x1152x1614
Machine weight Kg. 150
Hourly production rate Boxes/h by operator speed
Width driving belts mm. 65 up. / 90 low.
Box transfer speed mt./min. 24
Minimum box dimensions (LxWxH) mm. 150x165x110
Maximum box dimensions (LxWxH) mm. ∞x660x660
Maximum weight of the box Kg. 6 each 100 mm. lenght
Workbench height mm. 650 ÷ 750
ELECTRICAL DATA U.M.
Voltage V 400
Phases 3~+PE
Frequency Hz 50
Installed power kW 0,22
Electrical protection rating IP 55





* The specifications may be subject to change.
