GoldTape
opzione 1 Sealing machine with operator
opzione 2 Box sealing with selfadhesive –tape
opzione 3 Top and bottom belt drive system – top and bottom sealing

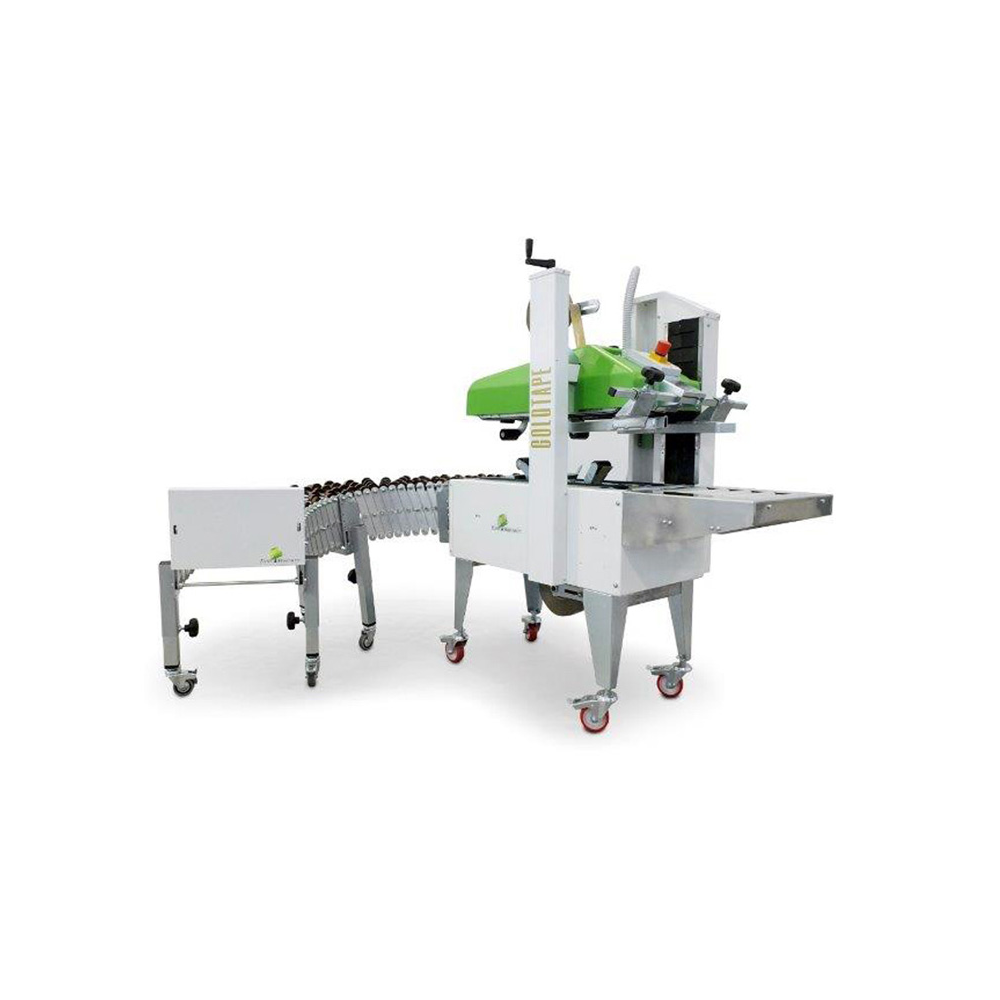

Semi automatic carton sealer with manual dimensioning for the top and bottom sealing of American type boxes.

Goldtape is the small and compact carton sealer for companies with space constraints and for small businesses which want to increase their efficiency with a cost effective product. A carton sealer is the right choice even for small batches of boxes as no operator can be as fast and accurate as a machine taping simoultanously bottom and top flaps.The machine must be adjusted through handles on the box dimensions to be sealed.The operator squares the boxes folding the bottom flaps, fills the boxes, folds the top flaps and insert them into the machine.While the boxes pass through the machine the top and bottom flaps will be sealed simultaneously from the taping heads TUe.

  • Infeed Free roller conveyor L= 400/W=350mm
  • Box transfer on driving belts combined with steel plates
  • Two columns frame with one screw each to symmetrically move top taping head
  • 4 side guides (2 + 2) to keep the box top flaps closed
  • 2 standard taping heads TUe (top & bottom)
  • legs with casters Ø 80mm
  • Start & Stop button with Stop emergency button in ergonomic & easy to reach position

GOLDTAPE

TECHNICAL DATA U.M.
Machine footprint (LxWxH) mm. 1370x556x1350
Machine weight Kg. 70
Hourly production rate Boxes/h 1200
Width driving belts (2+2) mm. 62 Up. / 62 Low.
Box transfer speed mt./min. 18
Minimum box dimensions (LxWxH) mm. 150x130x100
Maximum box dimensions (LxWxH) mm. ∞x365x380
Maximum weight of the box Kg. 6 each 100 mm.lenght
Workbench height mm. 650
ELECTRICAL DATA U.M.
Voltage V 400
Phases 3~+PE
Frequency Hz 50
Installed power kW 0,12
Electrical protection rating IP 55



* The specifications may be subject to change.
